| Electrical system | controller | AC asynchronous controller | |||
| Battery | Special maintenance-free battery for traction 72V150AH (8V*9pieces） | ||||
| Motor | Special AC asynchronous motor 72V/5KW | ||||
| Charger | Computerized intelligent car charger 72V/25A, charging time <8 hours | ||||
| DC Converter | High power isolated DC converter 72V/12V-500W | ||||
| Body configuration | Front shield and wiper | Automotive laminated glass, wiper blades | |||
| Roof | Aluminum profile frame plus GFRP fiberglass roof lightweight design | ||||
| Cushion | Ergonomic design, luxurious PU fabric seats are made of cold hair sponge and will not deform for a long time. | ||||
| Floor | Aluminum alloy anti-slip floor | ||||
| Body | The body is lightweight designed with sheet metal, GFRP fiberglass and aluminum profiles, also beautiful and durable,lightweight and other unique advantages. | ||||
| Chassis | Made of national standard steel, the main beam is made of patented technology for tailor welding and pickling, phosphating, cathodic electrophoresis and anti-rust treatment. | ||||
| rearview mirror | Adjustable for each hand、foldable exterior rearview mirror | ||||
| Led light signal | Headlights, turn signals, reversing lights, brake lights | ||||
| Dashboard | Molded dashboard, electric vehicle combination meter, electric lock switch, combination switch, single-position wiper switch, emergency double flash switch | ||||
| steering system | Two-way rack and pinion steering system, automatic gap compensation function, EPS electric power assist | ||||
| Brake system | Front disc and rear drum + hydraulic dual-pipeline braking system, vacuum electronic assist + handbrake parking | ||||
| suspension system | Front: MacPherson independent suspension Rear: Longitudinal leaf spring non-independent suspension + damper |
||||
| audio speaker | USB playback host can be plugged in and dual speakers,Whistler, reversing reminder buzzer | ||||
| wheel | 165/70R13C+ wheel cover | ||||
| Technical parameters | length*width*height | 4600*1550*2115±5(mm) | curb weight | 1020（kg） | |
| Rated number of passengers (people) | 4-5 | Cargo bucket size | 2000*1500*400±5(mm) | ||
| Maximum driving speed | ≤30km/h | cargo overload | 1000（kg） | ||
| Driving range | ≥80（km） | minimum ground clearance | ≥150mm | ||
| Maximum grade | ≥20% | Wheelbase | 2080±10(mm) | ||
| Slope holding performance | 20% | Wheelbase (front/rear) | 1285/1325（mm） | ||
| Minimum turning radius | ≤5.2m | braking distance | ≤5m | ||
| Optional parts | 1、Aluminum alloy wheels are 500 yuan, 2、reversing images are 500 yuan, 3、small fans are 200 yuan 4、bus seats are 1,000 yuan, 5、luxury seats are 1,500 yuan per row 6、Heating and cooling air conditioner 3,000 yuan 7、Driving recorder 500 yuan 8、LED display 500 yuan |
||||

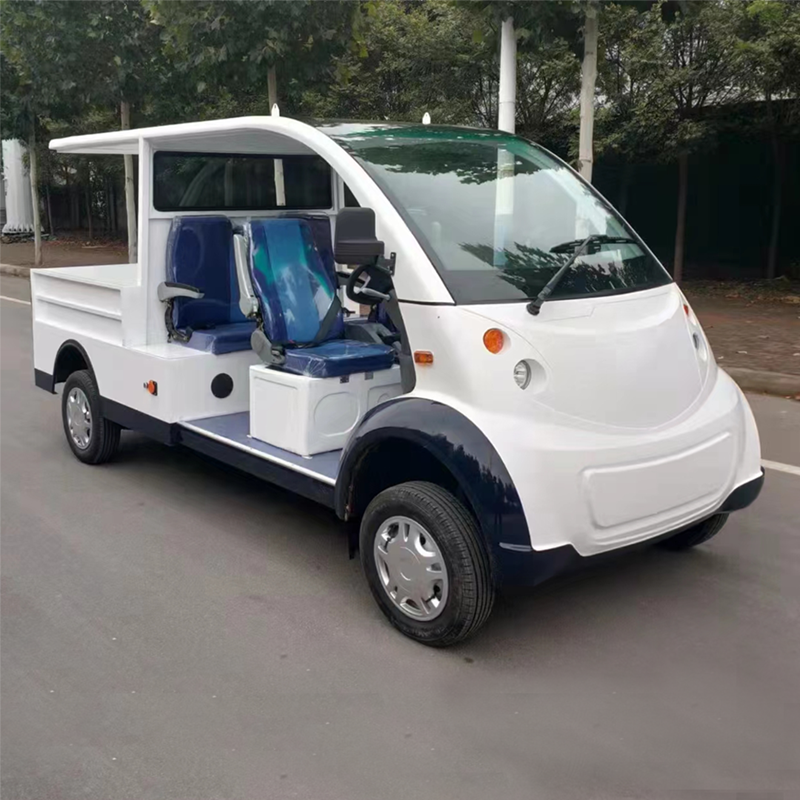

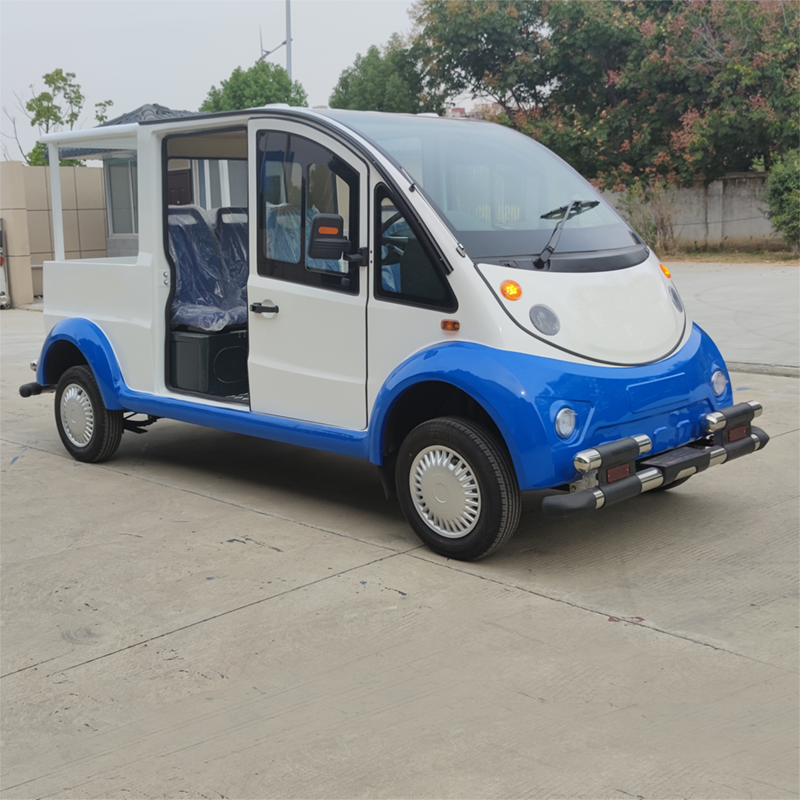

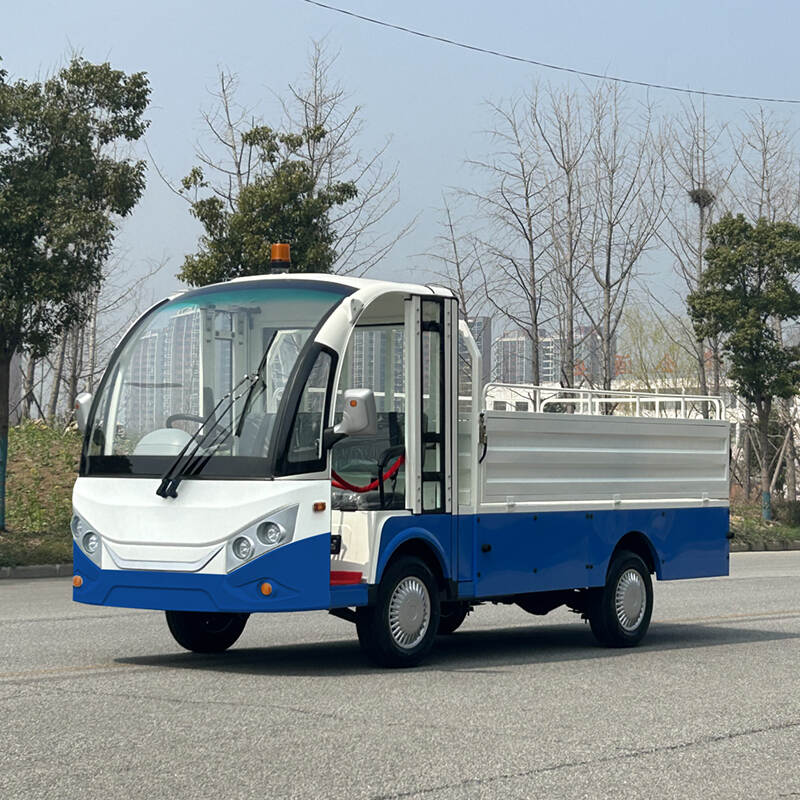

Electric modified truck
Our factory focuses on the production of electric modified vehicles, with a wide range of products that can meet the needs of different customers.
Our electric modified vehicles are modified on the platform of electric sightseeing vehicles and electric patrol vehicles. The color, size and functions can be customized according to customer requirements. Products include: 2-seater closed container cargo truck, 2-seater closed hydraulic tail lift truck, 2-seater electric service work truck, 2-seater electric high-pressure cleaning truck and other models, covering closed trucks, open-top cargo bucket trucks, engineering vehicles, ambulances , patrol cars, pickup trucks, etc., as well as trucks with different loads from 1.5 tons to 5 tons and various customized models.
Choosing our electric modified vehicles means choosing high-quality, diversified and personalized product solutions. We look forward to working with you to create brilliance together!
一、The popularity of electric modified vehicles
In recent years, electric modified vehicles have received more and more attention in the market and have gradually become a trend. Whether they are car owners pursuing individuality or units with specific work needs, they have shown strong interest in electric modified vehicles.
On the one hand, for individual consumers, traditional vehicle styles are no longer able to meet their needs to express their unique taste and style. Electric modified vehicles just provide an excellent opportunity for them to customize the color of the vehicle according to their own preferences. , appearance and various configurations can be customized to create a unique and exclusive car. For example, some young car owners like cool styles and will make their electric modified cars look like neon strips and metallic decorations, making them turn heads on the road.
On the other hand, from the perspective of commercial and work purposes, many companies and units have found that the advantages of electric modified vehicles in function customization can be a good fit for their own business development. For example, in the logistics industry, goods can be transported more efficiently by customizing electric modified enclosed trucks with different load specifications; in scenic spots, parks and other places, service vehicles and patrol vehicles modified based on electric sightseeing vehicle platforms can meet the needs of In addition to the needs of personnel movement and safety inspections within the venue, the appearance can also be customized according to the characteristics of the environment to better integrate into the overall atmosphere.
It can be said that electric modified cars are becoming increasingly popular in the market due to their high degree of customization and wide range of application scenarios. Because of this, today we will take a closer look at electric modified cars.
二、Advantages of electric modified vehicles in our factory
（1） Rich and diverse product types
The electric modified vehicle products in our factory can be said to be of a wide variety and have everything you need. Based on the two major platforms of electric sightseeing cars and electric patrol cars, we have modified them and derived a variety of models to meet the needs of use in different scenarios.
For example, there are 2-seater closed box truck models, which are particularly suitable for transporting some small goods. The closed box can ensure the safety of the goods during transportation and avoid wind, rain, loss, etc.; and The 2-seater enclosed hydraulic tailgate truck has a hydraulic tailgate design that makes loading and unloading cargo easier and more convenient, greatly improving work efficiency.
In addition, the 2-seater electric service vehicle is also one of our flagship products. It can be configured according to different service scenarios, such as providing guidance and consulting services to tourists in scenic spots, or performing order maintenance at large-scale event sites. competent. The 2-seater electric high-pressure cleaning vehicle plays an important role in urban cleaning and park sanitation maintenance, and can complete cleaning tasks efficiently.
From the perspective of vehicle type coverage, our products cover different types such as closed trucks, open-top bucket trucks, engineering vehicles, ambulances, patrol vehicles, pickup trucks, etc., whether it is logistics transportation, engineering operations, security patrols, medical rescue, etc. You can find suitable models in every field. Moreover, trucks with different load specifications are also available, ranging from 1.5 tons to 5 tons. Trucks with different load capacities can meet the diverse needs of light to heavier cargo transportation. There are also various customized models to suit customers in all aspects. personalized requirements.
(2) Flexible customized services
Our factory knows that every customer's needs are different, so we provide extremely flexible customization services for everyone. In terms of color, whether it is classic and elegant black and white, or eye-catching and unique red and blue, or customizing exclusive colors according to the color card provided by the customer, we can make it happen so that the appearance of the vehicle can reflect the customer's personality. Personality and preferences.
The size can also be customized on demand. The length, width and height of the vehicle can be adjusted according to the customer's actual use site, the size of the transported goods and other factors to ensure that the vehicle can pass and operate with ease in various environments.
Function customization is our strength. Customers can put forward their own expectations for vehicle functions, such as adding special storage space, configuring specific work equipment, improving vehicle endurance, etc. Our professional technical team will respond to these requirements. Carry out targeted modifications to electric modified vehicles to make their functions more suitable for actual use scenarios.
Moreover, in terms of load capacity, we have options ranging from 1.5 tons to 5 tons, and can accurately create vehicles with appropriate load capacity according to customers' specific cargo load requirements to ensure transportation safety and efficiency. In short, through such comprehensive and personalized customized services, no matter what unique needs our customers have, we can do our best to meet them and provide you with the most suitable electric modified vehicles
(1) Clever modifications of the urban management department
In urban management work, electric patrol cars can exert unexpected practical effects after being cleverly modified. Take the Wuhan Urban Management Bureau as an example. They modified a pickup truck originally used for patrolling, added a large funnel to the rear of the vehicle, and transformed it into a salt spreading truck that can quickly spread snow melting agent.
Whenever there is ice and snow, modified vehicles like this come in handy. On the one hand, the cost of modification is relatively low, and it makes full use of existing vehicle resources and avoids the high cost of purchasing additional snow removal equipment. The urban management department can directly drive these pick-up trucks that are usually used for patrols, quickly reach the road sections that need snow removal, and carry out fixed-point salt spreading operations. They can also flexibly adjust the amount of salt spreading according to the actual road conditions, greatly reducing the waste of resources. On the other hand, pickup trucks themselves have strong off-road capabilities and practicality. They are basically not subject to too many road conditions when traveling on urban roads. Even some areas with a lot of snow and poor road conditions can go smoothly. For example, power can also be taken from the head of the vehicle to provide stable power support for the installed rolling snow removal equipment, further improving the snow removal function.
After such modification, it not only effectively improves the efficiency of snow removal, but the snow that may have required a lot of manpower and time to clear can be melted faster after the snow melting agent is quickly spread by the salt spreading truck, ensuring smooth roads; it also reduces the driver's The operating difficulty makes quick snow removal work more convenient and safer. This practical and economical car modification trick has been widely recognized and praised by citizens. Passing citizens can't help but look back and take a second look and are amazed. At the same time, this also reflects the innovative thinking of the urban management department in their work. Through reasonable modification, electric patrol vehicles can play an important role in different scenarios and help urban management to be carried out more efficiently.

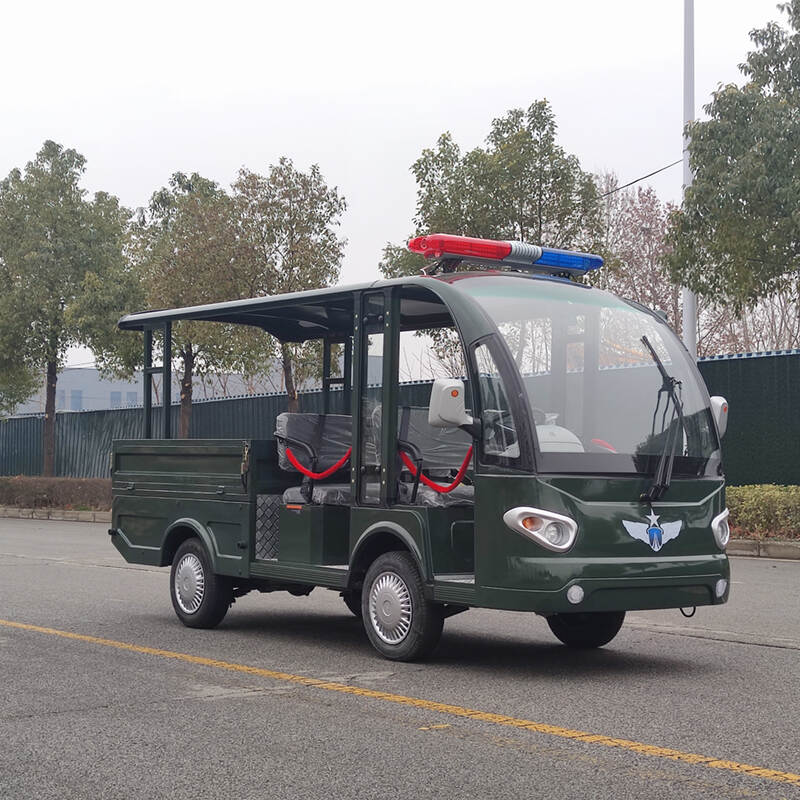

(2) Functional modification of police patrol cars
When the police perform patrols and other tasks, it is also crucial to carry out appropriate functional modifications to electric patrol vehicles. For example, the Dongcheng Branch of the Beijing Municipal Public Security Bureau has carefully modified police electric vehicles to meet actual work needs.
In the past, police officers from the Dongcheng Branch were often affected by factors such as road traffic congestion, unsuitable traffic for police vehicles on some road sections, and unstable conditions of patrol police vehicles. In order to carry out their work better, they modified 50 new electric vehicles for police use based on the actual conditions in the jurisdiction. The modified police electric vehicles are uniformly equipped with practical police equipment such as safety isolation panels, on-board intercom systems, retractable police lights, and law enforcement recorders. These equipment have greatly improved the police's ability to patrol at night and ensured that the law enforcement process is more standardized and effective. sequence.
Moreover, taking into account the complex road conditions such as narrow roads and potholes in the old city, the Dongcheng Branch also specially made targeted modifications to the shock absorption and braking systems of electric vehicles, effectively ensuring the driving safety of patrol policemen and allowing them to operate during patrols. It can shuttle through the streets and alleys more smoothly and safely. In addition, the starting method of the vehicle has also been upgraded. The traditional key start has been changed to the use of NFC card induction start. As long as the electric patrol car key is affixed to the induction area, as the prompt sound sounds, the police electric vehicle can be started. The lock was successfully unlocked, and this change greatly improved the portability of use.
Through such a series of modifications, the newly established Dongcheng Branch Mobile Patrol Team can more efficiently carry out patrol prevention and control, pedestrian flow diversion, chaos clearing, and quick response processing on East Chang'an Street, Wangfujing Street, Qianmen Street and surrounding sections. The work not only further increases the rate of police encounters in society, but also significantly improves the people's sense of security, fully demonstrating the powerful role of the modified electric patrol vehicles in promoting police work.
